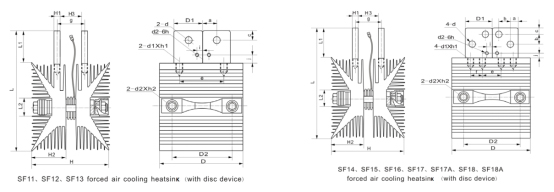

Air Cooling Heatsink of SF Series
Dimension:
|
Type |
Contact Dia. |
Outline Dimensions |
Conductor |
Assembly Dimension L2 / D2 / H2 / H3 / d / d2*h2 |
|||||||||
|
SF11 |
45 |
170 |
110 |
125 |
60 |
40 |
8 |
33 |
80 |
15 |
22 |
2hole Φ13 |
M10*120 |
|
SF12 |
50 |
200 |
110 |
125 |
60 |
40 |
8 |
33 |
80 |
15 |
22 |
2hole Φ13 |
M10*120 |
|
SF13 |
50 |
220 |
120 |
130 |
60 |
40 |
8 |
33 |
90 |
15 |
45 |
2hole Φ13 |
M10*120 |
|
SF14 |
65 |
250 |
140 |
145 |
80 |
50 |
10 |
38 |
105 |
15 |
45 |
4hole Φ11 |
M12*140 |
|
SF15 |
65 |
280 |
140 |
165 |
80 |
60 |
12 |
38 |
105 |
15 |
45 |
4hole Φ13 |
M12*150 |
|
SF16 |
80 |
280 |
180 |
200 |
80 |
60 |
12 |
34 |
130 |
15 |
66 |
4hole Φ13 |
M12*180 |
|
SF17 |
80 |
300 |
200 |
215 |
80 |
60 |
12 |
34 |
140 |
15 |
73 |
4hole Φ13 |
M12*180 |
|
SF17A |
80 |
300 |
200 |
225 |
80 |
60 |
12 |
34 |
140 |
24 |
82 |
4hole Φ13 |
M12*180 |
Parameter:
|
Type |
Assembly Dimension a / b / c / e / f / g / i / j |
Heat Resistance |
Flow Resistance |
Weight |
|||||||
|
SF11 |
20 |
/ |
20 |
55 |
/ |
30 |
6 |
20 |
≤0.120 |
≤40 |
2 |
|
SF12 |
20 |
/ |
20 |
55 |
/ |
30 |
6 |
20 |
≤0.090 |
≤45 |
2.6 |
|
SF13 |
20 |
/ |
20 |
64 |
/ |
53 |
6 |
20 |
≤0.071 |
≤55 |
3.5 |
|
SF14 |
12.5 |
25 |
12.5 |
40 |
35 |
55 |
8 |
20 |
≤0.056 |
≤60 |
4.9 |
|
SF15 |
17.5 |
25 |
15 |
40 |
35 |
62 |
8 |
20 |
≤0.048 |
≤65 |
6 |
|
SF16 |
17.5 |
25 |
15 |
30 |
40 |
78 |
8 |
20 |
≤0.037 |
≤70 |
9.5 |
|
SF17 |
17.5 |
25 |
15 |
40 |
40 |
85 |
8 |
20 |
≤0.030 |
≤75 |
13.5 |
|
SF17A |
17.5 |
25 |
15 |
40 |
40 |
94 |
8 |
20 |
≤0.030 |
≤75 |
13.5 |
Above are general types, if any special customized design required, please contact for support
