Diode Module

Description:

  1. At 60Hz: IFSM(8.3ms)=IFSM(10ms)×1.066,Tj=Tj;I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm.
  2. VTO threshold voltage, rT slope resistance

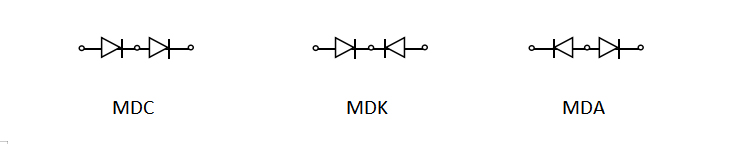

Connection Circuit

1

Parameter:



Type IF(AV)
@85℃
A		 VRRM
V		 IRRM
V=VRRM
@150℃
Max mA		 VFM
@25℃
Max   /   IFM
V    /    A		 VISO
50Hz,RMS 2mA，1min @25℃
Min
V		 Outline
MDC/MDK/MDA 1200-2000V (Air cooling)
MD*90-** 90 1200-2000 5 1.30 270 2500 M2-20
MD*110-** 110 1200-2000 5 1.30 330 2500 M2-20
MD*160-** 160 1200-2000 5 1.30 480 2500 M2-34
MD*200-** 200 1200-2000 5 1.30 600 2500 M2-34
MD*250-** 250 1200-2000 5 1.30 750 2500 M4-53
MD*300-** 300 1200-2000 5 1.30 900 2500 M4-53
MD*350-** 350 1200-2000 5 1.30 1050 2500 M4-53
MD*400-** 400 1200-2000 10 1.30 1200 2500 M4-63
MD*500-** 500 1200-2000 10 1.30 1500 2500 M4-63
MD*600-** 600 1200-2000 10 1.30 1800 2500 M4-66
MD*800-** 800 1200-2000 10 1.45 2400 2500 M4-66
MD*1000-** 1000 1200-2000 10 1.45 3000 2500 M4-76
MD*1200-** 1200 1200-2000 10 1.45 3000 2500 M4-77
MDC/MDK/MDA 1200-2000V (Air cooling)
MD*160-** 160 2200-3500 5 1.60 480 2500-4000 M2-34
MD*200-** 200 2200-3500 5 1.60 600 2500-4000 M4-53
MD*250-** 250 2200-3500 5 1.60 750 2500-4000 M4-53
MD*300-** 300 2200-3500 5 1.60 900 2500-4000 M4-53
MD*350-** 350 2200-3500 5 1.60 1050 2500-4000 M4-53
MD*400-** 400 2200-3500 10 1.65 1200 2500-4000 M4-63
MD*500-** 500 2200-3500 10 1.70 1500 2500-4000 M4-63
MD*600-** 600 2200-3500 10 1.70 1800 2500-4000 M4-66
MD*800-** 800 2200-3500 15 1.70 2400 2500-4000 M4-76
MD*1000-** 1000 2200-3500 15 1.75 3000 2500-4000 M4-76
MD*1200-** 1200 2200-3500 15 1.75 3000 2500-4000 M4-77
MDC/MDK/MDA 3600-4500V (Air cooling)
MD*160-** 160 3600-4500 10 1.80 480 4000-5000 M2-34
MD*200-** 200 3600-4500 10 1.80 600 4000-5000 M4-53
MD*250-** 250 3600-4500 15 1.80 750 4000-5000 M4-53
MD*300-** 300 3600-4500 15 1.80 900 4000-5000 M4-53
MD*350-** 350 3600-4500 15 1.80 1050 4000-5000 M4-53
MD*400-** 400 3600-4500 25 1.85 1200 4000-5000 M4-63
MD*500-** 500 3600-4500 25 1.90 1500 4000-5000 M4-63
MD*600-** 600 3600-4500 35 1.90 1800 4000-5000 M4-66
MD*800-** 800 3600-4500 35 1.95 2400 4000-5000 M4-76
MD*1000-** 1000 3600-4500 35 2.00 3000 4000-5000 M4-77
MDC/MDK/MDA 1200-2000V (Water cooling)
MD*400-** 400 1200-2000 10 1.35 1200 2500 M4-53-S
MD*500-** 500 1200-2000 10 1.35 1500 2500 M4-63-S
MD*600-** 600 1200-2000 10 1.35 1800 2500 M4-66-S
MD*800-** 800 1200-2000 10 1.50 2400 2500 M4-76-S
MD*1000-** 1000 1200-2000 10 1.50 3000 2500 M4-76-S
MD*1200-** 1200 1200-2000 10 1.50 3000 2500 M4-77-S
NOTE：*-connection mode   **-module voltage

YpackTM Series High Standard Thyristor Module

Type IF(AV)
@85℃
A		 VRRM
V		 IRRM
V=VRRM
@150℃
Max mA		 VFM
@25℃
Max   /   IFM
V    /    A		 VISO
50Hz,RMS 2mA，1min @25℃
Min
V		 Outline
YpackTM High Reliability Diode Module
DD162-** 160 1200-2000 5 1.30 480 2500 M2-34
DD200-** 200 1200-2000 5 1.30 600 2500 M2-34
DD250-** 2500 1200-2000 5 1.30 750 2500 M4-50
DD300-** 300 1200-2000 10 1.30 900 2500 M4-50
DD400-** 400 1200-2000 10 1.30 1200 2500 M4-60
DD500-** 500 1200-2000 10 1.30 1500 2500 M4-60
DD570-** 570 1200-2000 10 1.30 1500 2500 M4-60
YpackTM Single Diode Module
DZ400-** 400 1200-2000 5 1.30 1200 2500 DM4-50
DZ500-** 500 1200-2000 5 1.30 1500 2500 DM4-50
DZ600-** 600 1200-2000 5 1.30 1800 2500 DM4-50
DZ650-** 650 1200-2000 10 1.30 1950 2500 DM4-70
DZ730-** 730 1200-2000 10 1.40 2190 2500 DM4-70
NOTE：*-connection mode   **-module voltage

YpackTM series high standard diode module is packaged with YA and YC series chips. The device is designed for users with higher requirement and performance.
